SPECIFICATIONS

Brand Name: NoEnName_Null

Color: Black

Height: 103mm

Hign-concerned Chemical: None

Length: 83mm

Model Number: CDZ-14

Origin: Mainland China

Weight (g): 220G

Width: 85mm

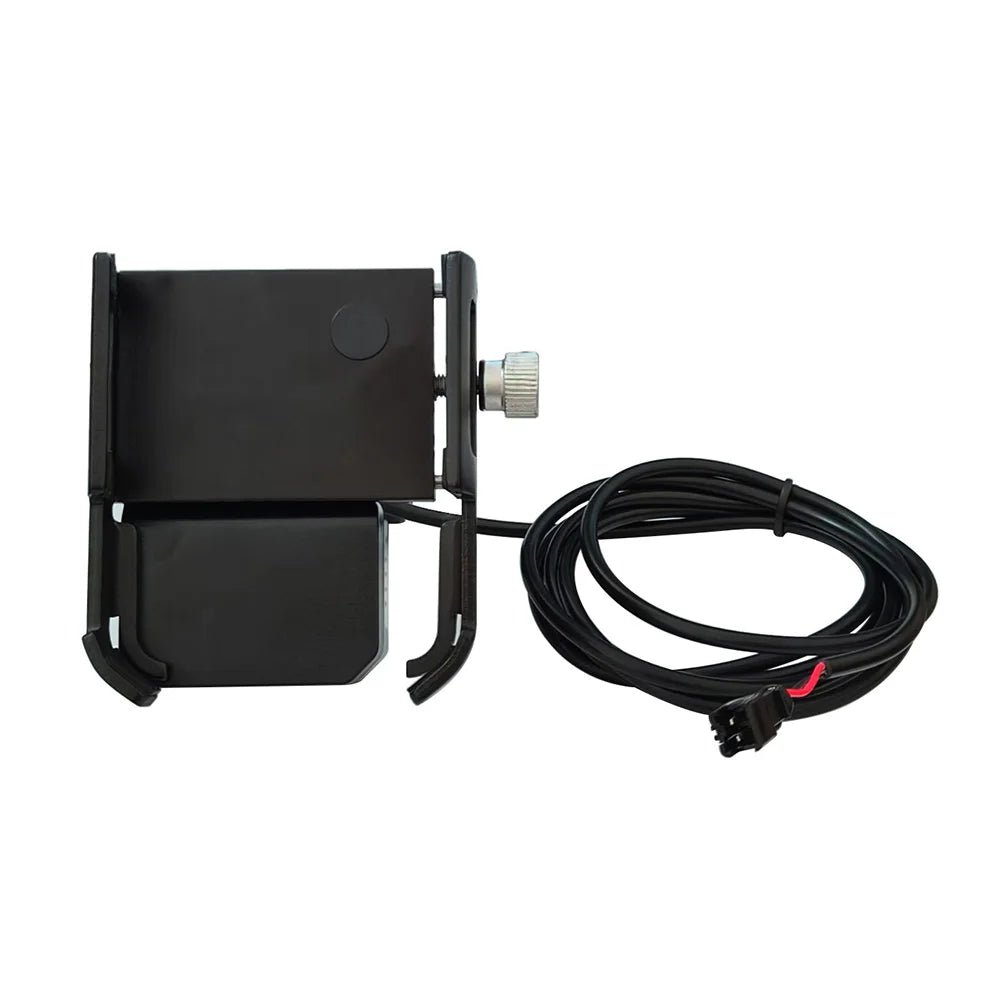

Product Specifications:

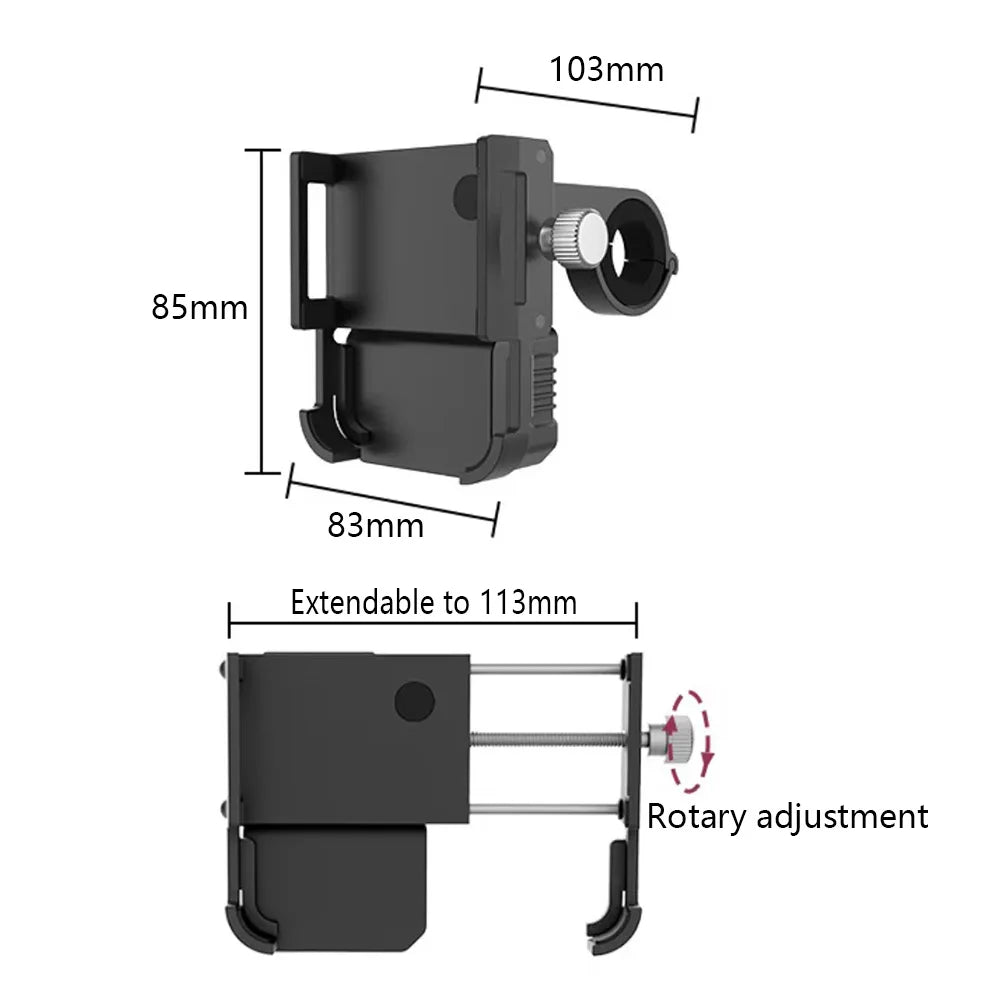

  1.The size of this bracket is 83*85*103mm, the shell is made of PC and aluminium alloy, which is sturdy and durable, and should not be damaged or deformed. This bracket can be used in the voltage range of 24-80 volts, while the waterproof rating reached IPX4, rainy day travelling without worrying.

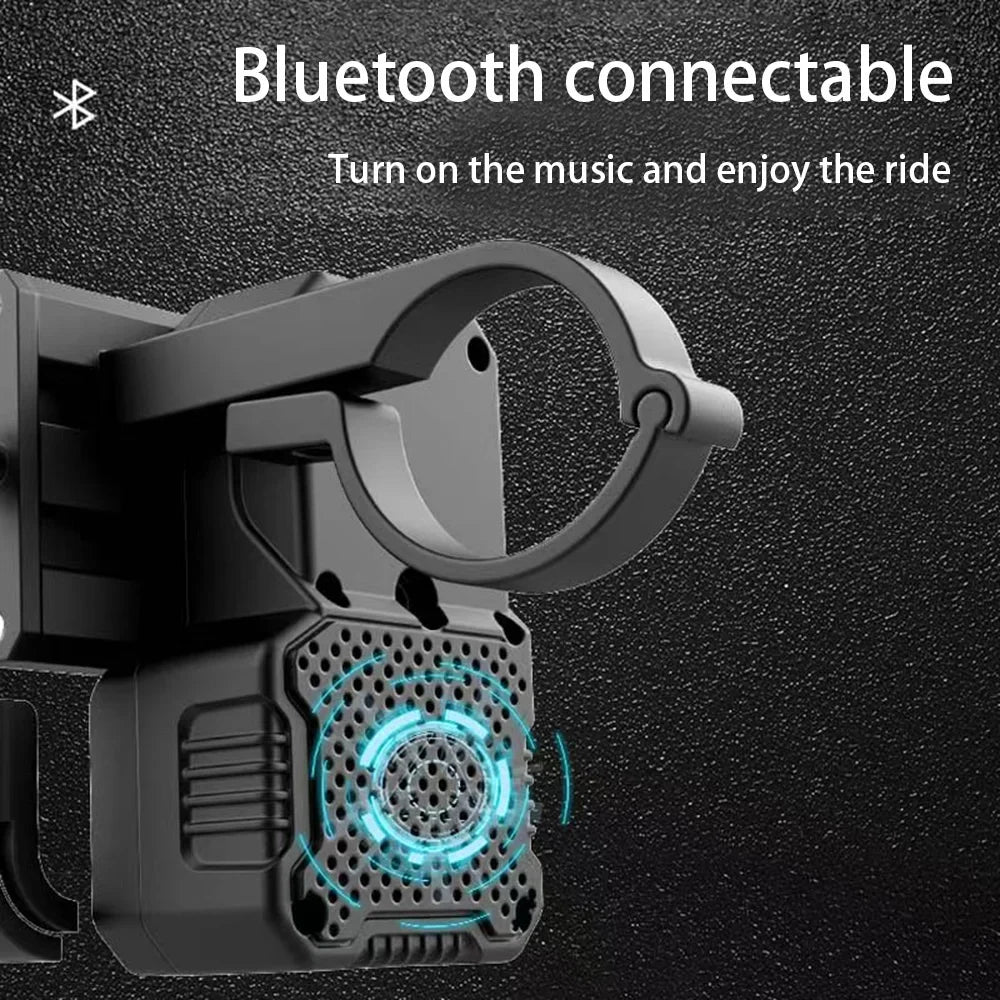

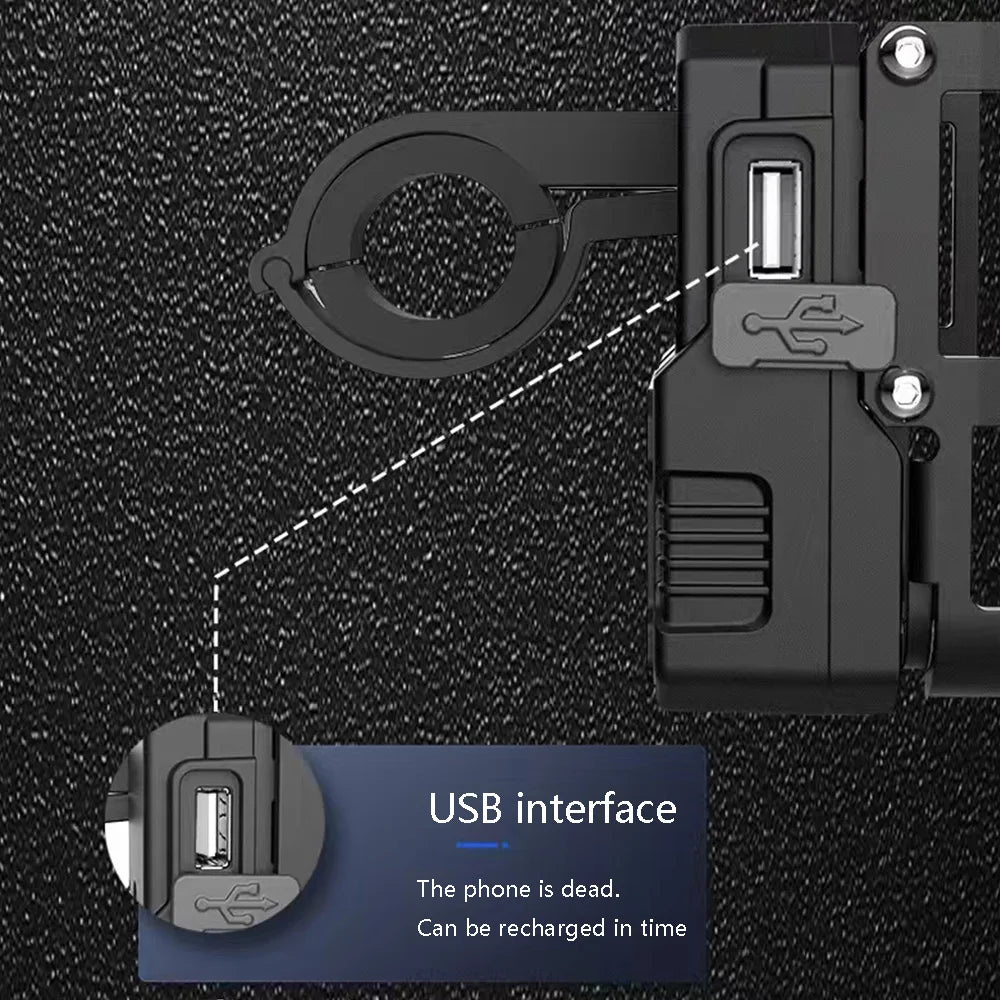

  2.This bracket has a USB charging interface, 5V/2A mobile phone standard fast charger, can also be used as a mobile phone charger, but its best feature is to be able to connect to the Bluetooth stereo, mobile phone sound through the stereo external, become an external stereo, in the process of riding can play music and mobile phone voice.

  3.This multifunctional mobile phone holder does the functions of mobile phone fixing, mobile phone charging, mobile phone bluetooth audio in one.

  4.The integrated product function is suitable for electric bike, folding bike and other models.

Installation process:

  1.Unscrew the screws on the bracket feet and remove the adhesive pads and bracket feet fixing piece.

  2. Open the gap of the rubber pad, the gap is facing upward on the set of the directional rod, hold it down by hand, and then the bracket feet and bracket feet fixed piece along the sides of the rubber pad buckle, the rubber pad to adjust the angle, the gap is facing the angle of screwing the screws, and then debug the bracket to use the angle of the bracket, and then tighten the screws to fix the bracket.

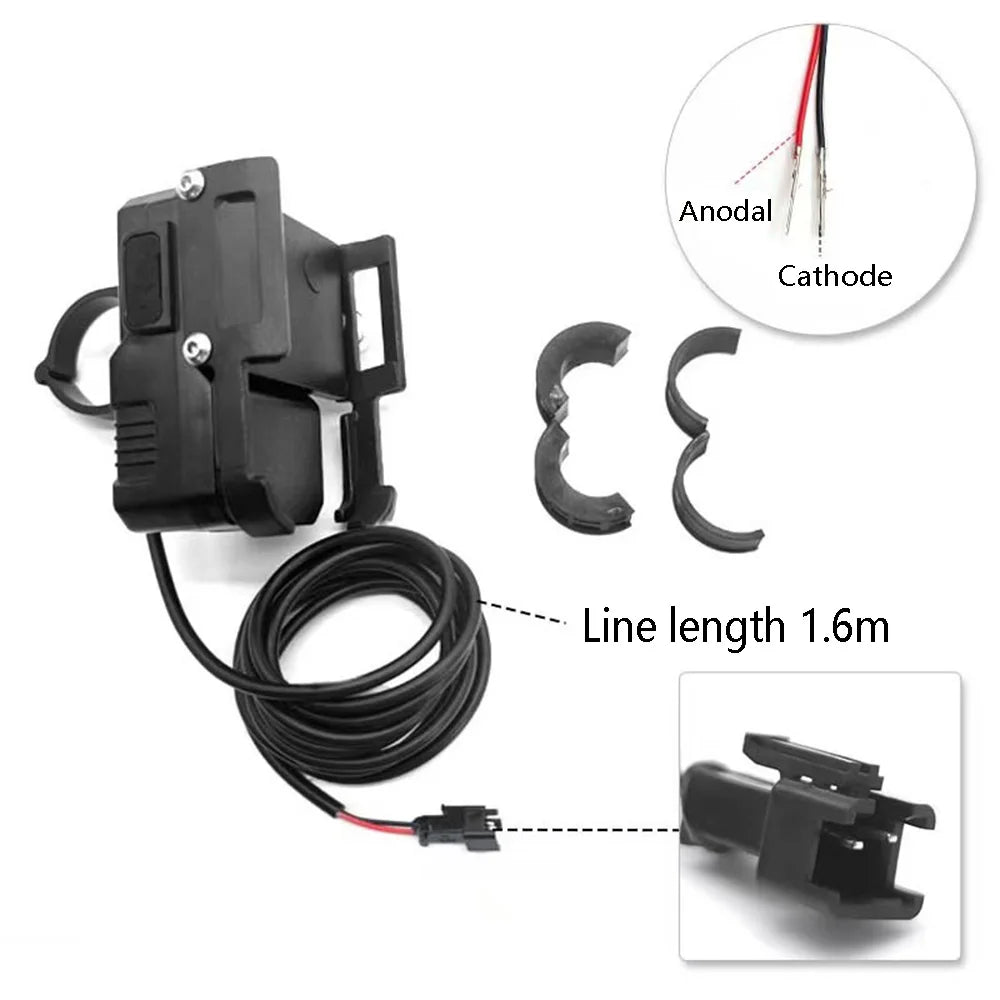

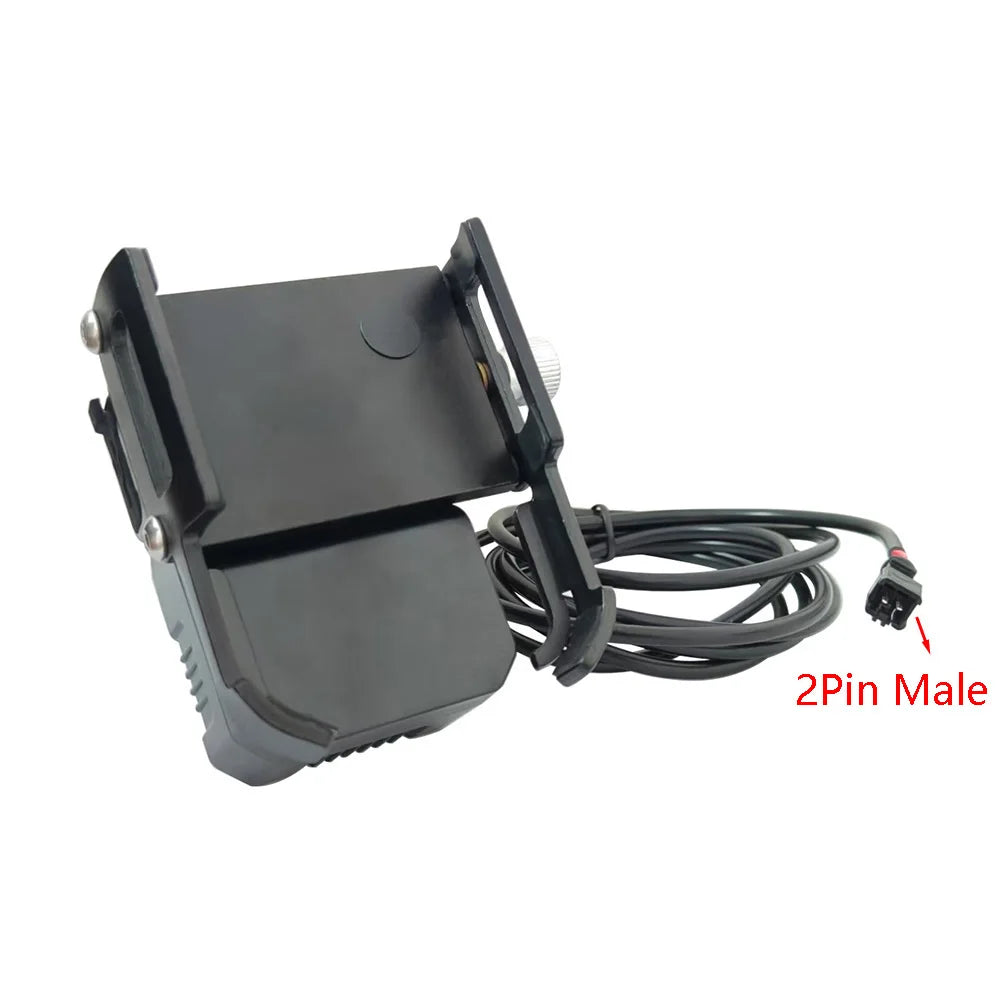

  3. Connect the red wire of the product to the transmission line of the electric door lock and the black wire to the ground.

Packing:

  1*Mobile phone holder
